Running Failure Flags experiments

This document will walk you through running your first Failure Flags experiments. You can find examples in our example GitHub repository.

‍

Example: the HTTPHandler service

Throughout this document, we'll demonstrate examples using Failure Flags by proxy and a simple web application called "HTTPHandler" deployed on AWS Lambda. This application takes incoming web requests and returns the time taken to process each request.

‍

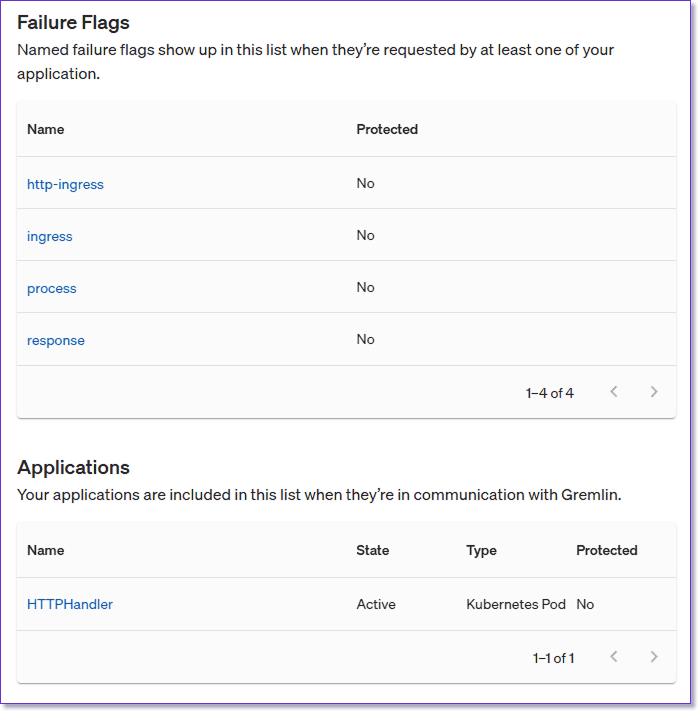

We'll use both methods of running Failure Flags: using proxy mode and using the SDK. The http-ingress, ingress, process, and response flags are added by their respective proxies. This example also includes a custom flag created using the SDK, called http-request. http-request has two labels: one tracks the request method, and the other tracks the URL path. Here is how this flag is configured using the Failure Flags SDK:

Node.js example

const gremlin = require('@gremlin/failure-flags')

module.exports.handler = async (event) => {
  start = Date.now()

  // If there is an experiment defined for this failure-flag, that is also
  // targeting the HTTP method and or path then this will express the
  // effects it describes.
  await gremlin.invokeFailureFlag({
    name: 'http-request',
    labels: {
      method: event.requestContext.http.method,
      path: event.requestContext.http.path,
    },
  })

  return {
    statusCode: 200,
    body: JSON.stringify(
      {
        processingTime: Date.now() - start,
        timestamp: event.requestContext.time,
      },
      null,
      2
    ),
  }
}

‍

Go example

package main

import (
    "fmt"
    "time"

  "github.com/aws/aws-lambda-go/events"
  "github.com/aws/aws-lambda-go/lambda"

  gremlin "github.com/gremlin/failure-flags-go"
)

func handler(request events.APIGatewayProxyRequest) (events.APIGatewayProxyResponse, error) {
    start := time.Now()

  // Add a failure flag
    gremlin.Invoke(gremlin.FailureFlag{
        Name: `http-request`, // The name of the failure flag
        Labels: map[string]string{  // Additional metadata we can use for targeting
              `method`: request.HTTPMethod,
              `path`: request.Path,
        }})

    return events.APIGatewayProxyResponse{
        Body:       fmt.Sprintf(`{"processingTime": %v, "timestamp": "%v"}`, time.Since(start), start),
        StatusCode: 200,
    }, nil
}

func main() {
    lambda.Start(handler)
}

‍

Creating a new Failure Flags experiment

‍

To create a new experiment:

1. Open the Gremlin web app and select Failure Flags in the left-hand nav menu.
2. Click Create an Experiment.
3. Enter an experiment name. This can be anything you wish.
4. Under Failure Flag Selector, use the drop-down menu to select the Failure Flag you want to target.
   1. To limit the code executions that the Failure Flag will impact, use the Attributes drop-down. This drop-down lists labels attached to the Failure Flag, such as the HTTP request method and URL. Select the attribute name from the drop-down, then in the Value field, enter the value(s) that the attribute must match in order to be impacted.
   2. You can enter additional attributes by clicking the + icon, or remove an attribute by clicking the recycling bin icon.
5. Under Application Selector, use the drop-down menu to select the application you want to target. This menu will only list actively detected application. You can see a list of active applications in the Gremlin web app.
   1. To limit which applications the Failure Flag will impact, use the Attributes drop-down. This drop-down lists labels detected in the application, including automatically-detected labels (such as availability zone or region for cloud applications). Select the attribute name from the drop-down, then in the Value field, enter the value(s) that the attribute must match in order to be impacted.
   2. You can enter additional attributes by clicking the + icon, or remove an attribute by clicking the recycling bin icon.
   3. By default, any new instances of the application that Gremlin detects will be automatically included in the experiment. To prevent this, click the Prevent new application instances from joining at runtime checkbox.
6. Under Effects, use the drop-down menu to select the type of experiment (the “effect”) to run. Then, use the Attributes fields to specify the parameters for the experiment. For example, selecting a latency experiment shows two attribute fields: one for the amount of latency to add (ms), and one for the amount of jitter to add (jitter).
7. Select the percentage of matching Failure Flags instances to impact using the Impact Probability boxes. For example, if you choose 1%, then only 1% of the total Failure Flag instances matching your selectors will be impacted by the experiment. This does not apply to code executions—the Failure Flag selector name determines that.
8. Specify how long the experiment will run for using Experiment Duration.
9. Click Save to save the experiment, or Save & Run to save and immediately execute the experiment.

‍

Experiment options

Selectors

Selectors are JSON objects consisting of key-object pairs that tell Gremlin which application and Failure Flags to target for an experiment, as well as what effects to apply.

As an example, our HTTPHandler contains the following Node.js code:

const gremlin = require('@gremlin/failure-flags');

module.exports.handler = async (event) => {
  await gremlin.invokeFailureFlag({
    name: 'http-request',
    labels: {
      method: event.requestContext.http.method,
      path: event.requestContext.http.path }});
...
};

‍

This means that the the Failure Flag name is http-request, and the application name is HTTPHandler. With Failure Flags by proxy, the corresponding Failure Flag would be http-ingress.

‍

Application Attributes

Application attributes identify specific instances of an application to run experiments on. For example, the HTTPHandler application runs in AWS Lambda in several different regions. We can use the following application attribute to only impact instances in us-west-1:

labels: { "region": ["us-west-1"] }

‍

Gremlin automatically identifies some selectors where applicable (such as region and availability-zone), but you can add your own when configuring Failure Flags (or by using the Failure Flags SDK).

‍

Flag Attributes

Flag attributes are selectors for targeting specific executions of the application's code. For example, this flag exposes the HTTP method and path for each request to Gremlin, letting us selectively impact requests based on their values:

const gremlin = require('@gremlin/failure-flags');

module.exports.handler = async (event) => {
  await gremlin.invokeFailureFlag({
    name: 'http-request',
    labels: {
      method: event.requestContext.http.method,
      path: event.requestContext.http.path }});
...
};

‍

We could, for example, only impact POST requests using the following attribute:

{ "method": ["POST"] }

‍

Gremlin also supports URL path-style wildcard matching on label values. For example, the Gremlin REST API provides an endpoint for viewing team details at /teams/{teamID}/profile. The following effect would impact all GET requests to this endpoint for all teams:

{ "path": ["/teams/**/profile"] }

‍

Effects

The Effect parameter is where you define the details of the experiment and the impact it will have on your application. The Effect parameter is a simple JSON map that gets passed to Failure Flags when an application is targeted by a running experiment.

‍

Latency

Latency introduces a constant delay into each invocation of the application. Specify latency for the key, and the number of milliseconds you want to delay as the value. For example, this effect introduces a 2000 millisecond delay:

{ "latency": 2000 }

‍

Minimum latency with jitter

Alternatively, you can add latency where the amount varies. For example, this effect introduces between 2000 and 2200 milliseconds of latency, where there is a pseudo-random uniform probability of the SDK applying any value within the jitter amount:

{
  "latency": {
    "ms": 2000,
    "jitter": 200
  }
}

‍

Errors

The Error effect throws an error with the provided message. This is useful for triggering specific error-handling methods or simulating errors you might find in production. For example, this effect triggers an error with the message "Failure Flag error triggered":

{ "exception": "Failure Flag error triggered" }

‍

If your application uses custom error types or other error condition metadata, you can add this metadata to the error effect:

{
  "exception": {
    "message": "Failure Flag error triggered",
    "name": "CustomErrorType",
    "someAdditionalProperty": "add important metadata here"
  }
}

‍

Errors in .NET

In .NET, the format of the exception impacts the type of exception thrown:

• Using {"exception": "TestException"} will throw a TestException exception with no message.
• Using {"exception": { "message": "TestException" } } will throw a FailureFlagsException with the message TestException.

‍

Combining Latency and Error effects

You can combine the latency and error effect to cause a delay before throwing an exception. This is useful for recreating conditions like network connection failures, degraded connections, or timeouts.

For example, this effect will cause the Failure Flag to pause for 2 full seconds before throwing an exception with a custom message:

{
  "latency": 2000,
  "exception": "Failure Flag delayed error triggered"
}

‍

Modifying HTTP responses

When using Failure Flags by proxy and the http-ingress, ingress, or response flags, you can inject custom responses using the httpResponse attribute. This attribute lets you modify the response's HTTP status code, Content-Type header, and body.

To provide a modified response, add the following to the Effects field with the following values:

‍

{
  "httpResponse": {
    "code": 429,
    "contentType": "application/json",
    "body": "SGVsbG8gd29ybGQh"
  }
}

‍

Customizing an experiment's impact

When using the Failure Flags SDK, you can customize the impact of the experiment by adding a behavior function. For example, the following snippet writes data about the experiment to the console instead of applying the experiment to your code:

Node.js example

await gremlin.invokeFailureFlag({
  name: 'http-request',
  labels: {
    method: event.requestContext.http.method,
    path: event.requestContext.http.path,
  },

  // Log the experiment after it's complete
  behavior: async (experiment) => {
    console.log('handling the experiment', experiment)
  },
})

‍

Go example

gremlin.Invoke(gremlin.FailureFlag{
  Name: `http-request`,
  Labels: map[string]string{
    `method`: request.HTTPMethod,
    `path`: request.Path,
  },

  // the following line provides an implementation of the failureflags.Behavior type
  Behavior: func(ff FailureFlag, exps []Experiment) (impacted bool, err error) {
    // write the experiments to standard out
    fmt.Fprintf(os.Stdout, `processing experiments: %v`, exps)
    // continue processing using the default behavior chain
    return failureFlags.DelayedPanicOrError(ff, exps)
  }
})

‍

For even greater control, the SDK can detect whether an experiment is currently active. For example, during an experiment, you might want to prevent making certain API calls, or rollback a transaction. In most cases the Errors effect can help, but you can also create branches in your code. For example:

Node.js example

if (await failureflags.invokeFailureFlag({ name: 'http-request' })) {
  // If there is a running experiment then run this branch
} else {
  // If there is no experiment, or it had no impact, then run this branch
}

‍

Go example

if active, impacted, err := FailureFlag{Name: `http-request`}.Invoke(); active && impacted {
  // If there is a running experiment then run this branch
} else {
  // If there is no experiment, or it had no impact, then run this branch
}

‍

Language-specific features

This section is for features unique to specific SDKs.

Go

Panic

The Go SDK offers a unique fault called panic. This causes Failure Flags to panic with the provided message. This is useful when validating that either your application handles Go panics correctly, or when assessing the impact to other parts of the system when your code panics:

{ "panic": "this message will be used in an error provided to panic" }

‍

More information and examples are available on the project's GitHub repo.

‍

Node.js

Changing application data

Failure Flags are also capable of modifying data, such as variables. In your application's call to invokeFailureFlag, add a new dataPrototype property and assign it a variable like a network request or response. You can also pass in object literals.

let myData = {name: 'HTTPResponse'}; // this is just example data, it could be anything

myData = await failureflags.invokeFailureFlag({
  name: 'flagname',       // the name of your failure flag
  labels: {},             // additional attibutes about this invocation
  dataPrototype: myData); // "myData" is some variable like a request or response. You could also pass in an object literal.

‍

Once the dataPrototype property is set, you can add a data object to the effect statement. Any properties in the data object will be copied into a new object created from the prototype you provided.

{
  "data": {
    "statusCode": 404,
    "statusMessage": "Not Found"
  }
}

‍

While this experiment is active, myData will be changed to the following:

{
  "name": "HTTPResponse",
  "statusCode": 404,
  "statusMessage": "Not Found"
}

‍

‍

‍
