How to Install and Use Gremlin with Docker on Ubuntu 16.04

Last Updated:

March 15, 2018

Topics:

Introduction

Gremlin is a simple, safe and secure way to use Chaos Engineering to improve system resilience. You can use Gremlin with Docker in a variety of ways. It is possible to attack Docker containers and it is also possible to run Gremlin in a container to create attacks against the host or other containers.

This tutorial will provide a walkthrough of the following:

How to install Docker
How to create a htop container to monitor the host and containers
How to create an Nginx Docker container to attack using Gremlin
How to install Gremlin on the host
How to create a CPU Attack from the host against an nginx Docker container using the Gremlin Control Panel

To run Gremlin in a Docker container, view the guide on How to Install and Use Gremlin in a Docker Container.

Prerequisites

Before you begin this tutorial, you’ll need the following:

An Ubuntu 16.04 server
A Gremlin account (sign up here)
The <span class="code-class-custom">apt-transport-https</span> package to be able to install gremlin from our repo via HTTPS.

Step 1 - Installing Docker

In this step, you’ll install Docker.

Add Docker’s official GPG key:

BASH


curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -

‍

Use the following command to set up the stable repository.

BASH


sudo add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable"

‍

Update the apt package index:

BASH


sudo apt-get update

‍

Make sure you are about to install from the Docker repo instead of the default Ubuntu 16.04 repo:

BASH


apt-cache policy docker-ce

‍

Install the latest version of Docker CE:

BASH


sudo apt-get install docker-ce

‍

Docker should now be installed, the daemon started, and the process enabled to start on boot. Check that it's running:

BASH


sudo systemctl status docker

‍

Make sure you are in the Docker usergroup, replace $USER with your username:

BASH


sudo usermod -aG docker $USER

‍

Log out and back in for your permissions to take effect, or type the following:

BASH


su - ${USER}

‍

Step 2 - Create an htop container for monitoring

htop is an interactive process viewer for unix.

Create the docker file:

BASH


vim Dockerfile

‍

Add the following to the Dockerfile:

DOCKER


FROM alpine:latest
RUN apk add --update htop && rm -rf /var/cache/apk/*
ENTRYPOINT ["htop"]

‍

Build the Dockerfile and tag the image:

BASH


docker build -t htop .

‍

Run htop inside a container:

BASH


docker run -it --rm --pid=host htop

‍

To exit htop, use the q key.

Next we will create an nginx container and monitor the new container directly by joining the nginx container’s pid namespace.

Step 3 - Create an nginx Docker container to be used for Gremlin Attacks

First we will create a directory for the html page we will serve using nginx:

BASH


mkdir -p ~/docker-nginx/html
cd ~/docker-nginx/html

‍

Create a simple html page:

BASH


vim index.html

‍

Paste in the content shown below:

HTML


<html>
  <head>
    <title>Docker nginx tutorial</title>
    <link
      rel="stylesheet"
      href="https://maxcdn.bootstrapcdn.com/bootstrap/4.0.0/css/bootstrap.min.css"
      integrity="sha384-Gn5384xqQ1aoWXA+058RXPxPg6fy4IWvTNh0E263XmFcJlSAwiGgFAW/dAiS6JXm"
      crossorigin="anonymous"
    />
  </head>
  <body>
    <div class="container">
      <h1>Hello this is your container speaking.</h1>
      <p>This page was created by your Docker container.</p>
      <p>Now it's time to create a Gremlin attack.</p>
    </div>
  </body>
</html>

‍

Create a container using the nginx Docker image:

BASH


sudo docker run -l service=nginx --name docker-nginx -p 80:80 -d -v ~/docker-nginx/html:/usr/share/nginx/html nginx

‍

View the nginx Docker container

BASH


sudo docker ps -a

‍

You will see the following:

BASH


CONTAINER ID        IMAGE               COMMAND                       CREATED                 STATUS                   PORTS                         NAMES
352609a67e95           nginx               "nginx -g 'daemon of…"   33 seconds ago      Up 32 seconds       0.0.0.0:80->80/tcp   docker-nginx

‍

Step 4 - Use an htop container to monitor an nginx Docker container

htop can be used to monitor Gremlin attacks against the host and Gremlin attacks against individual containers.

Join the docker-nginx container’s pid namespace:

BASH


docker run -it --rm --pid=container:docker-nginx htop

‍

Before the attack, htop will show you that CPU is not spiking:

BASH


1  [|                                                               0.7%]   Tasks: 3, 0 thr; 1 running
  2  [||                                                              1.3%]   Load average: 0.07 0.05 0.06
  Mem[||||||||||||||||||||||||||                                141M/3.86G]   Uptime: 02:48:43
  Swp[                                                               0K/0K]

  PID USER      PRI  NI    VIRT   RES   SHR   S   CPU%   MEM%   TIME+   Command
   10 root      20    0    4324   1708  936   R   0.0    0.0    0:00.05  htop
    1 root      20    0    32428  5080  4400  S   0.0    0.1    0:00.03  nginx: master process nginx -g daemon off;
    5 101       20   0     32900  3060  1824  S   0.0    0.1    0:00.00  nginx: worker process

‍

Next we are going to install Gremlin on the host to perform attacks.

Step 5 - Installing the Gremlin Daemon and CLI

First, add the Gremlin Debian repository:


echo "deb https://deb.gremlin.com/ release non-free" | sudo tee /etc/apt/sources.list.d/gremlin.list

‍

Import the repo’s GPG key:


sudo apt-key adv --keyserver keyserver.ubuntu.com --recv-keys C81FC2F43A48B25808F9583BDFF170F324D41134 9CDB294B29A5B1E2E00C24C022E8EF3461A50EF6

‍

Then install the Gremlin daemon and CLI:


sudo apt-get update && sudo apt-get install -y gremlind gremlin

‍

After you have created your Gremlin account (sign up here) you will need to find your Gremlin Daemon credentials. Login to the Gremlin App using your Company name and sign-on credentials. These were emailed to you when you signed up to start using Gremlin.

Navigate to Team Settings and click on your Team.

Store your Gremlin agent credentials as environment variables, for example:


export GREMLIN_TEAM_ID=3f242793-018a-5ad5-9211-fb958f8dc084

‍


export GREMLIN_TEAM_SECRET=eac3a31b-4a6f-6778-1bdb813a6fdc

‍

Next run the Gremlin Daemon in a Container.

Use docker run to pull the official Gremlin Docker image and run the Gremlin daemon:

BASH


docker run -d --net=host \
  --cap-add=NET_ADMIN --cap-add=SYS_BOOT --cap-add=SYS_TIME \
  --cap-add=KILL \
  -v $PWD/var/lib/gremlin:/var/lib/gremlin \
  -v $PWD/var/log/gremlin:/var/log/gremlin \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -e GREMLIN_TEAM_ID="$GREMLIN_TEAM_ID" \
  -e GREMLIN_TEAM_SECRET="$GREMLIN_TEAM_SECRET" \
  -e GREMLIN_CLIENT_TAGS="foo=bar" \
  gremlin/gremlin daemon

‍

Use docker ps to see all running Docker containers:

BASH


sudo docker ps

‍

BASH


CONTAINER ID        IMAGE                COMMAND                  CREATED             STATUS              PORTS                    NAMESb281e749ac33        gremlin/gremlin      "/entrypoint.sh daem…"   5 seconds ago       Up 4 seconds                                 relaxed_heisenberg

‍

Jump into your Gremlin container with an interactive shell (replace b281e749ac33 with the real ID of your Gremlin container):

BASH


sudo docker exec -it b281e749ac33 /bin/bash

‍

From within the container, check out the available attack types:

BASH


gremlin help attack-container

‍

BASH


Usage: gremlin attack-container CONTAINER TYPE [type-specific-options]Type "gremlin help attack-container TYPE" for more details:  blackhole # An attack which drops all matching network traffic  cpu   # An attack which consumes CPU resources  io    # An attack which consumes IO resources  latency # An attack which adds latency to all matching network traffic  memory  # An attack which consumes memory  packet_loss # An attack which introduces packet loss to all matching network traffic    shutdown  # An attack which forces the target to shutdown  dns   # An attack which blocks access to DNS servers  time_travel # An attack which changes the system time.  disk    # An attack which consumes disk resources  process_killer  # An attack which kills the specified process

‍

Step 6 - Creating attacks using the Gremlin App

Example: Creating a CPU Attack from the host against the nginx Docker container using the App

You can use the Gremlin App or the Gremlin API to trigger Gremlin attacks. You can view the available range of Gremlin Attacks in Gremlin Help.

The “Hello World” of Chaos Engineering is the CPU Resource Attack. To create a CPU Resource Attack select “Resource” and then “CPU” in the dropdown menu.

The CPU Resource Attack will consume CPU resources based on the settings you select. The most popular default settings for a CPU Resource Attack are pre-selected, a default attack will utilize 1 core for 60 seconds. Before you can run the Gremlin attack you will need to click either Exact hosts to run the attack on or click the Random attack option.

Click Exact and select the host you created the nginx Docker container on, in this example that is 138.68.226.195.

Example: Using Container Labels to Attack Specific Containers

Container labels will enable you to choose containers on your host to attack.

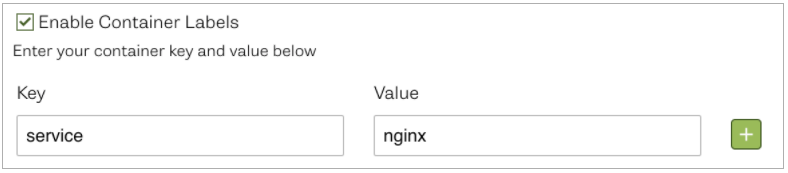

Click to enable container labels, type in the label details of the container.

For this example, the Nginx Docker container label we created is set to service=nginx.

BASH


sudo docker run -l service=nginx --name docker-nginx -p 80:80 -d -v ~/docker-nginx/html:/usr/share/nginx/html nginx

‍

Finally select ”Create” to kick off a random Gremlin CPU Resource Attack on the nginx Docker container.

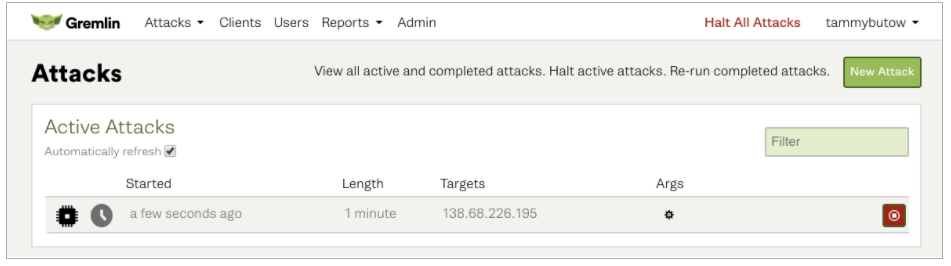

Your attack will begin to run, you will be able to view its progress via Gremlin Attacks in the Gremlin Control Panel.

To view the results of the attack join the docker-nginx container’s pid namespace:

BASH


docker run -it --rm --pid=container:docker-nginx htop

‍

You will see the following in htop:

BASH


1  [                                                      0.0%]   Tasks: 4, 1 thr; 2 running
  2  [||||||||||||||||||||||||||||||||||||||||||||||||||||100.0%]   Load average: 0.61 0.17 0.06
  Mem[||||||||||||||||||||||                          176M/3.86G]   Uptime: 00:37:17
  Swp[                                                     0K/0K]
  PID USER      PRI  NI  VIRT   RES   SHR S CPU% MEM%   TIME+  Command
   18 root       20   0 15456 13692  4112 S 100.  0.3  0:26.39 gremlin attack cpu -c 1 -l 60
   13 root       20   0  4324  1988   944 R  0.0  0.0  0:00.12 htop
    1 root       20   0 32428  5184  4504 S  0.0  0.1  0:00.04 nginx: master process nginx -g daemon off;
    8 101        20   0 32900  2948  1712 S  0.0  0.1  0:00.00 nginx: worker process

‍

If you have the Gremlin Slackbot enabled you will also see the bot post that the Gremlin Attack has started. When it’s successful the Gremlin Slackbot will post again. To setup the Gremlin Slackbot follow the guide, How to Setup and Use the Gremlin Slackbot.

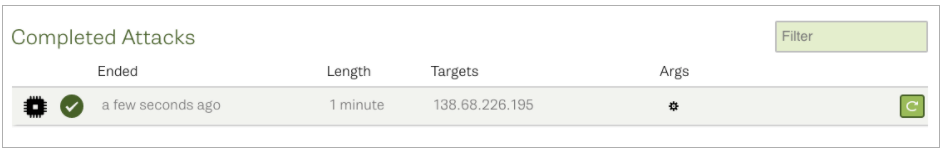

When your attack is finished it will move to Completed Attacks in the Gremlin App.

To view the logs of the Attack, click on the Attack in Completed Attacks.

Conclusion

You've installed Gremlin on a server running Docker and validated that Gremlin works by running the “Hello World” of Chaos Engineering for Docker Containers, the CPU Resource attack. You now possess tools that make it possible for you to explore additional Gremlin Attacks.

Gremlin’s Developer Guide is a great resource and reference for using Gremlin to do Chaos Engineering. You can also explore the Gremlin Community for more information on how to use Chaos Engineering with your infrastructure.
